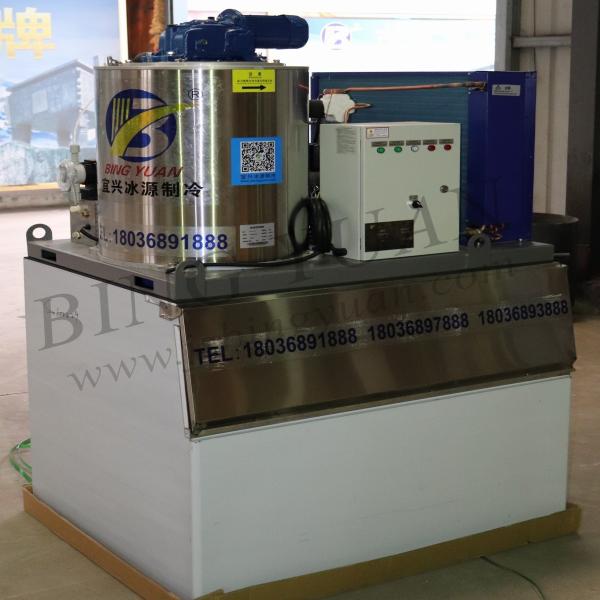

High Performance 3.94kw~90kw Commercial Ice Flake Machine 1ton

Name: High Performance 394kw90kw Commercial Ice Flake Machine 1ton
Brand: Yixing ICS
Price: 29 USD

Quality High Performance 3.94kw~90kw Commercial Ice Flake Machine 1ton wholesale

Brand Name : Yixing ICS

Certification : ce

Place of Origin : Jiangsu, China

MOQ : >=1 Sets

Price : $29,000.00

Supply Ability : 100 Set/Sets per Quarter

Packaging Details : Wood cases in standard container or less than container load.Each set is wrapped in plywood case and transport in standard container.

Ice Shape : Flake Ice

Ice storage capacity : OTHER

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertis

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location : Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea

Showroom Location : None

Condition : New

Voltage : 220~480V

Power : 3.94kw~90kw

Dimension(L*W*H) : L1200*W735*H825mm

Weight : 250 kg~9 ton

Warranty : 1 Year

After-sales Service Provided : Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support

Key Selling Points : Automatic

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Core Components : Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC, OTHER

Name : Flake ice making machine

Compressor : Germany Bitzer/Bock

Cooling Type : Air cooling

Application : Fresh-keeping/meat processing

Material : Stainless Steel 304

Ice thickness : 1.5-2mm

Daily capacity : 10 ton/24h

Outlet ice temperature : -5℃

Electrical component : Schneider-France

Keyword : Ice making machine

Port : Shanghai

Contact Now

Advantages of flake ice machine

1) Microcomputer Intelligent Control: the machine using world famous brand components. Meanwhile, it can protect the machine when there are a water shortage, ice full, high/ low-pressure alarm, and motor reversal.

2)Evaporator drum: use stainless steel 304 or carbon steel chrome for the evaporator drum. The scratch-style system of inside machine ensures constant running at the lowest power consumption, exquisite welding, and processing technology ensures high-efficient heat transfer and energy saving.
3)Ice skates: Spiral hob with small resistance and low consumption, ice making evenly without noise
4)Refrigeration unit: main components all from the leading refrigeration technology countries: the United States, Germany, Japan, etc.
5)Microcomputer intelligent control: the machine is using PLC control system with world famous brand components, which control the whole ice making process, meanwhile it can protect the machine when there are water shortage, ice full, high/ low-pressure alarm, and motor reversal in order to guarantee the machine run stable with fewer faults.

Advantages of Flake Ice

Flake ice has a large surface area [thickness 1.8mm ~2.2 mm], a target object can be cooled down quickly. Particularly, it can be used for solving a target object in water and then rapidly freezing it.
Because of a flake shape, the ice would fill the gap and block the surrounding heat when directly covering the target object. For this reason, the ice effectively maintains its freezing temperature.
Since a product is instantaneously frozen at -25℃, the freshness of a target object can be preserved in low temperature and also superior to preserve delicate fishes such as saury and sweet fish in cold temperature.

High Performance 3.94kw~90kw Commercial Ice Flake Machine 1ton

Flake ice is a kind of irregular ice with size about 40*40 mm and thickness around 1-2 mm.

The thin ice can be directly used for stirring and mixing refrigerated materials.

Besides, flake ice has no acute edges and corners so it will not damage the surface of cooled object.

With large contact area and fast cooling speed, flake ice can realize high efficiency cooling effects.

SPECIFICATIONS FOR 10 TON FLAKE ICE MACHINE
MODEL	DAILY CAPACITY	REFRIGERANT	POWER	WEIGHT
BYF-10AS	10 TON	R404A	3.94kw~90kw	250 kg~9 ton

High Performance 3.94kw~90kw Commercial Ice Flake Machine 1ton

Main Features

1) Internally-scraping ice skate can help reduce energy consumption and prevent leakage of refrigerant.

2) Stainless steel materials, advanced processing equipment and heat treatment processing ensure the best heat transfer efficiency.

3) The design of large water receiving plate can prevent water leaking at the bottom of evaporator

4) Direct liquid feeding and dry evaporation, simple&safe to control.

5) Integrated modular design, convenient to install and maintain.

High Performance 3.94kw~90kw Commercial Ice Flake Machine 1ton

Detailed Images

Flake ice is easy to crush and mold, with almost zero damage to the cooled products.

The internal structure of the evaporator is specially designed to improve the heat-exchange efficiency and to keep the loop unblocked with special processing technology.

High Performance 3.94kw~90kw Commercial Ice Flake Machine 1ton

The internally scraping ice making mode has been adopted, which reduces the loss of energy and avoids the leakage of refrigerant.

Certifications

High Performance 3.94kw~90kw Commercial Ice Flake Machine 1ton

Packaging & Shipping

High Performance 3.94kw~90kw Commercial Ice Flake Machine 1ton

Our Services

Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas
